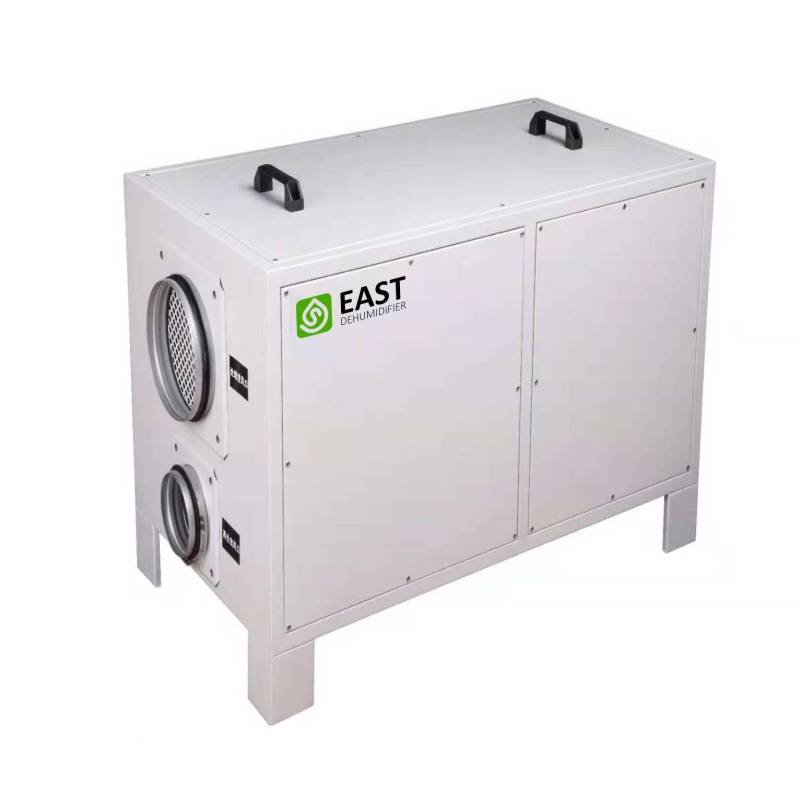

700m3/h rotary desiccant dehumidifier customization | dehumidifiers for sale | East Dehumidifier OEM ODM Manufacturing
700m3/h rotary desiccant dehumidifier customization | dehumidifiers for sale | East Dehumidifier OEM ODM Manufacturing
Detail Information
700m3/h air flow Desiccant Dehumidifier | Humidity Dehumidifier | Pharmaceutical Dehumidifiers | East Dehumidifier Manufacturer
EAST Desiccant industrial dehumidifier manufacture and wholesale | East Dehumidifier OEM ODM Manufacturing
EAST Desiccant Dehumidifiers are well designed for pharmaceutical, refrigeratory, laboratory, storage Etc.World well-known rotor inside, 10 years operation with trouble-free can be easily achieved. SCR (silicon controlled rectifier) constant temperature controlling system ensures inside temperature constant at certain degree and promise the reliable and stable performance. Even dehumidifying at low dew point will not be a big problem for EAST Desiccant Dehumidifiers. PTC regeneration heating ensures low energy consuming. Auto stop protection mode, Delay protection, fault locater system will highly protect both rotor and motor. Intelligent control system, accurate humidity control.
Technical Parameters
|
Model
|
SDC-300M |
SDC-600M
|
SDC-700M | SDC-800M | SDC-1000M | SDC-1200M | SDC-1500M |
SDC-2500M
|
SDC-3000M
|
Votage/ Frequency | 220V/50Hz | 220V/50Hz | 220V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Dehumidifying capacity (20°C,60%) | 2.0kg/h | 3.0kg/h | 4.0kg/h | 4.5kg/h | 7.5kg/h | 8.5kg/h | 10kg/h | 15kg/h | 19kg/h |
Power rating | 2.0KW | 4.5KW | 7KW | 10KW | 11KW | 13KW | 15KW | 24KW | 27KW |
|
Current
|
9A |
20A
|
32.5A | 16A | 18A | 20.5A | 23A |
37.5A
|
42A
|
|
Process air flow
|
320m3/h |
580m3/h
|
700m3/h | 850m3/h | 1100m3/h | 1250m3/h | 1550m3/h |
2500m3/h
|
3000m3/h
|
Reactivation air flow | 110m3/h | 200m3/h | 220m3/h | 260m3/h | 400m3/h | 450m3/h | 580m3/h | 925m3/h | 1100m3/h |
|
Process air flow pressure
|
80Pa |
100Pa
|
120Pa | 150Pa | 150Pa | 200Pa | 200Pa |
400Pa
|
400Pa
|
Reactivation air flow pressure | 50Pa | 70Pa | 70Pa | 100Pa | 100Pa | 150Pa | 150Pa | 200Pa | 200Pa |
Inlet size | Φ125mm*2 | Φ125mm*2 | Φ200mm*2 | Φ200mm*2 | Φ200mm*2 | Φ250mm*2 | Φ250mm*2 | 522*286/Φ400mm | 522*286/Φ400mm |
Outlet size | Φ80mm*2 | Φ100mm*2 | Φ125mm*2 | Φ150mm*2 | Φ150mm*2 | Φ160mm*2 | Φ160mm*2 | Φ200mm*2 | Φ200mm*2 |
Applied Temperature | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ |
Dimension | 680*425*400mm | 585*420*866mm | 1080*550*671mm | 875*640*1232mm | 875*640*1232mm | 880*678*1238mm | 880*678*1238mm | 1312*856*1300mm | 1312*856*1300mm |
Packed Diemension | 780*525*550mm | 685*520*1016mm | 1280*650*821mm | 975*740*1382mm | 975*740*1382mm | 980*778*1388mm | 980*778*1388mm | 1412*956*1500mm | 1412*956*1500mm |
Net Weight | 45 kg | 70 kg | 100 kg | 150 kg | 160 kg | 175kg | 180 kg | 270 kg | 280 kg |
Gross Weight | 55 kg | 80 kg | 110kg | 160 kg | 170 kg | 190 kg | 195 kg | 290 kg | 290 kg |
Features
1. Proflute rotor, more durable, can be easily used for 10 years.
2. PTC heater for regeneration, higher efficiency with lower energy consuming.
3. Precise humidity controlling
4. SCR(silicon controlled rectifier) constant temperature controlling system ensures inside temperature constant and promise the reliable and stable performance
5. low noise , high efficiency,removes excess moisture.
6. Process air inlet and dry air outlet located at the same side for easier installation; 7. Both”Auto” and”Manual” working mode 8. Auto stop protection function for Rotor ; 9. ABB,OMRON and Schneider electrical accessories ; 10. Delay time&earth leakage protection circuit. 11. Humidistat is used a better way to control humidity .
