Home / All / Dehumidifier / Desiccant Dehumidifier /

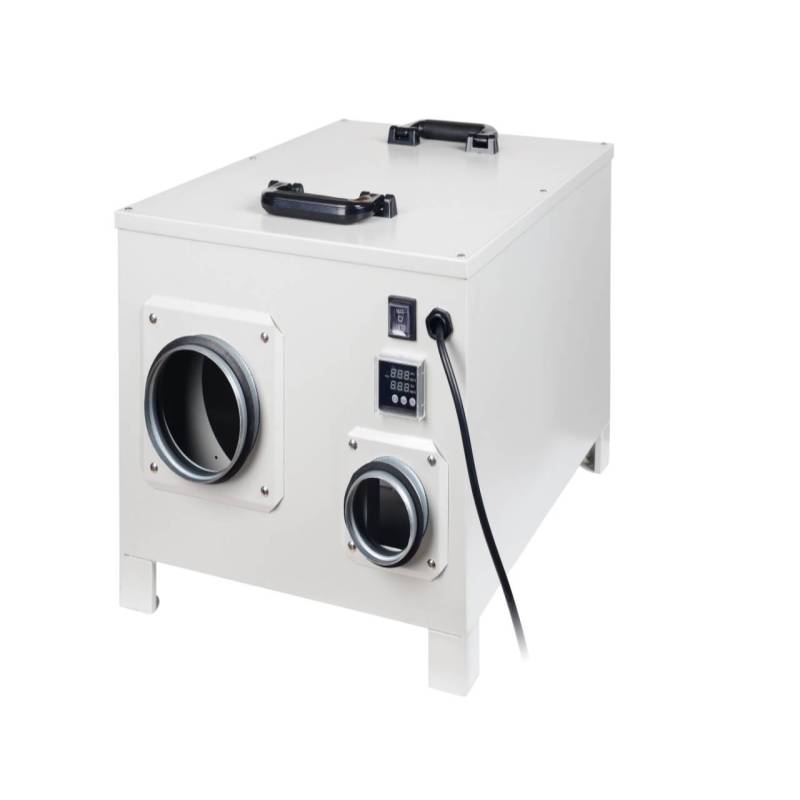

320m3/h Desiccant Wheel Dehumidifier Wholesale | commercial desiccant dehumidifier | best dehumidifier | East Dehumidifier OEM ODM Manufacturing

Categories	Desiccant Dehumidifier
Brand	East Dehumidifier OEM ODM Manufacturing
Model	SDC-300M
Process Air Flow	320m3/h
Dehumidity Type	Desiccant
Brand Name	East Dehumidifier OEM ODM Manufacuring
Location	Zhejiang, China
Condition	Brand New
Dehumidifying capacity(20°C,60%)	2.0kg/h
Votage/Frequency	220V~230V/ 50Hz 60Hz
Core Components	Motor, wheels
Function	Air Dry
Warranty	1 Year
FOB port	Shanghai or Ningbo
Terms of Payment	Western Union, MoneyGram, T/T, Paypal
Download
Update Time	Dec 22,2024

Contact Now

Favorites

Detail Information

320m3/h air flow Desiccant Dehumidifier | Humidity Dehumidifier | Pharmaceutical Dehumidifiers | East Dehumidifier Manufacturer

EAST Desiccant industrial dehumidifier manufacture and wholesale | East Dehumidifier OEM ODM Manufacturing

EAST Desiccant Dehumidifiers are well designed for pharmaceutical, refrigeratory, laboratory, storage Etc.World well-known rotor inside, 10 years operation with trouble-free can be easily achieved. SCR (silicon controlled rectifier) constant temperature controlling system ensures inside temperature constant at certain degree and promise the reliable and stable performance. Even dehumidifying at low dew point will not be a big problem for EAST Desiccant Dehumidifiers. PTC regeneration heating ensures low energy consuming. Auto stop protection mode, Delay protection, fault locater system will highly protect both rotor and motor. Intelligent control system, accurate humidity control.

Technical Parameters

Model	SDC-300M	SDC-600M	SDC-700M	SDC-800M	SDC-1000M	SDC-1200M	SDC-1500M	SDC-2500M	SDC-3000M
Votage/ Frequency	220V/50Hz	220V/50Hz	220V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Dehumidifying capacity (20°C,60%)	2.0kg/h	3.0kg/h	4.0kg/h	4.5kg/h	7.5kg/h	8.5kg/h	10kg/h	15kg/h	19kg/h
Power rating	2.0KW	4.5KW	7KW	10KW	11KW	13KW	15KW	24KW	27KW
Current	9A	20A	32.5A	16A	18A	20.5A	23A	37.5A	42A
Process air flow	320m3/h	580m3/h	700m3/h	850m3/h	1100m3/h	1250m3/h	1550m3/h	2500m3/h	3000m3/h
Reactivation air flow	110m3/h	200m3/h	220m3/h	260m3/h	400m3/h	450m3/h	580m3/h	925m3/h	1100m3/h
Process air flow pressure	80Pa	100Pa	120Pa	150Pa	150Pa	200Pa	200Pa	400Pa	400Pa
Reactivation air flow pressure	50Pa	70Pa	70Pa	100Pa	100Pa	150Pa	150Pa	200Pa	200Pa
Inlet size	Φ125mm*2	Φ125mm*2	Φ200mm*2	Φ200mm*2	Φ200mm*2	Φ250mm*2	Φ250mm*2	522*286/Φ400mm	522*286/Φ400mm
Outlet size	Φ80mm*2	Φ100mm*2	Φ125mm*2	Φ150mm*2	Φ150mm*2	Φ160mm*2	Φ160mm*2	Φ200mm*2	Φ200mm*2
Applied Temperature	-10~+50℃	-10~+50℃	-10~+50℃	-10~+50℃	-10~+50℃	-10~+50℃	-10~+50℃	-10~+50℃	-10~+50℃
Dimension	680425400mm	585420866mm	1080550671mm	8756401232mm	8756401232mm	8806781238mm	8806781238mm	13128561300mm	13128561300mm
Packed Diemension	780525550mm	6855201016mm	1280650821mm	9757401382mm	9757401382mm	9807781388mm	9807781388mm	14129561500mm	14129561500mm
Net Weight	45 kg	70 kg	100 kg	150 kg	160 kg	175kg	180 kg	270 kg	280 kg
Gross Weight	55 kg	80 kg	110kg	160 kg	170 kg	190 kg	195 kg	290 kg	290 kg

Features

1. Proflute rotor, more durable, can be easily used for 10 years. 2. PTC heater for regeneration, higher efficiency with lower energy consuming. 3. Precise humidity controlling 4. SCR(silicon controlled rectifier) constant temperature controlling system ensures inside temperature constant and promise the reliable and stable performance 5. low noise , high efficiency,removes excess moisture. 6. Process air inlet and dry air outlet located at the same side for easier installation; 7. Both”Auto” and”Manual” working mode 8. Auto stop protection function for Rotor ; 9. ABB,OMRON and Schneider electrical accessories ; 10. Delay time&earth leakage protection circuit. 11. Humidistat is used a better way to control humidity .
