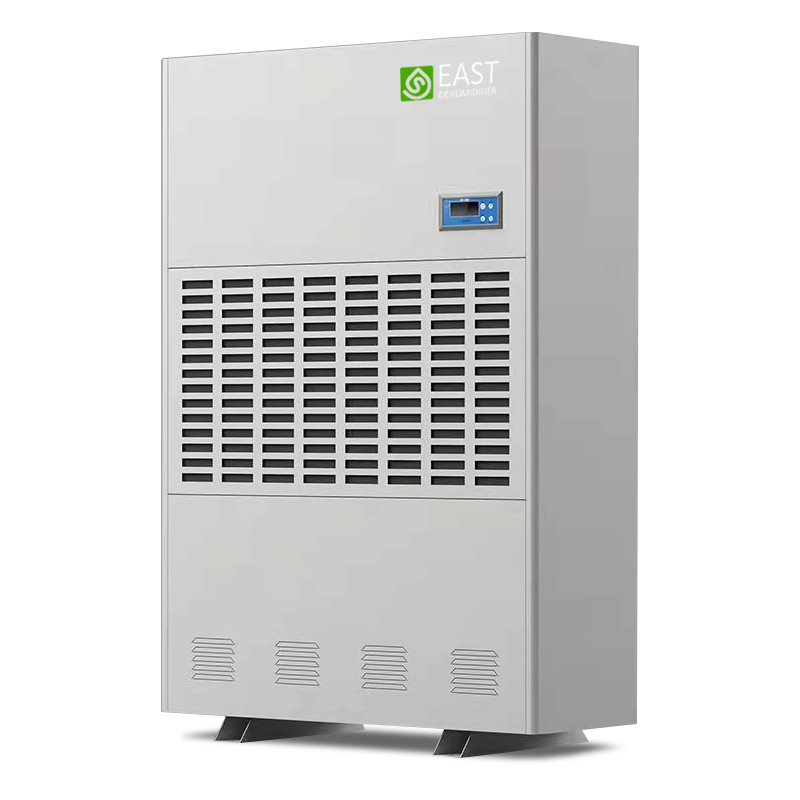

480 L/D High Efficiency Dehumidifier | Industrial Dehumidification Equipment | Room Air Dehumidifier | EAST Industrial Dehumidifier Manufacturer

Categories	Industrial Dehumidifier
Brand	East Dehumidifier OEM ODM Manufacturing
Model	SDI-480L
Installation	Universal wheel / Floor standing
Dehumidifying Type	Refrigeration
Refrigeration Technology	Compressor
Compressor Type	Rotary
Refrigerant	R410a / R407c
Cooling Capacity	16.4 Kw
Brand Name	East Dehumidifier OEM ODM Manufacturing
Location	Zhejiang, China
Condition	Brand New
FOB port	Shanghai or Ningbo
Terms of Payment	Western Union, MoneyGram, T/T, Paypal
Download
Update Time	Dec 22,2024

Contact Now

Favorites

Detail Information

EAST SDI Serise dehumidifier

EAST industrial dehumidifiers are designed for industry space bigger than 500 cube meters. Quality metal plate with CNC machine cutting, and painted with anti-corrosion paint, solid and long working life. The units use heavy industry quality Panasonic compressor and thickened inner grooved copper pipe to reach the best efficient of dehumidifying. High accuracy humidity sensor from Shinyei Japan has the feature of high anti-interference to make the units working more accurate. The intelligent control system has the function of malfunction self-inspection, automatic power off, continuous working and safety protection. Humidity control range 45%~99% RH. Water removal capacity up to 1000 liters per day

High Efficiency Dehumidifier

Features

Automatic defrosting
Big air volume 5600m³/h
Large heat exchanger to save energy
Humidity control range 45%~99%RH
Eco-friendly refrigerant R410a/R407c
Timed on/off setting with memory function
Rs485 socket with Modbus protocol connection
Refrigerant low and high pressure protection of compressor
Compressor start/stop according to ambient humidity
World famous brand compressor with safety protection

Parameter

Model no.	SDI-480L
Cooling Capacity	56,000 BTU	16.4 KW
Water Removal Capacity @86℉, RH80%, 24hrs	1015 Pints	480L
Supply Voltage	North America: 440~480v/60hz three phase Europe and China: 380~400v/50hz
Rated Power	6700W
Rated Amps	11.0A
Air Volume @ 0.0" ,CFM	3300	5600m³/h
Working Temperature	41℉~100℉	5℃~38℃
Humidity Range (RH)	40%~95%
Net Dimensions	47" x 19.7" x 68.7"	1195x500x1745mm
Packed Dimesions	50.2" x 22.9" x 76.5"	1295x600x1845mm
Net Weight	430 Lbs	195Kg
Gross Weight	474 Lbs	205Kg
Noise	≤70dB
Applying Area	4,500~7,000 Sqft	450-700㎡

Feature Details

World-famous brand compressor

Long life centrifugal motor

Big heat exchanger for high efficiency

Video

EAST Production line

The automatic production line and less workers is the key to high efficiency. EAST manufacture owns automatic coil tube cutting and bending line, automatic gas filling machines to ensure all parts within accurate requirements and products at stable quality. Large stock of raw materials and less labors reduced the cost of each unit.

Principle of Dehumidifier

The priciple of air circulation.

The wet air will be drawn into the machine and passed through the heat exchanger. So the moisture in the air will be condensed into water on the condenser and dry air will be released out of the dehumidifier.

The principle of refrigerant.

High pressure refrigerant liquid enters into the evaporator after throttling by capillary. The refrigerant is evaporated as low temperature and low pressure gas by absorbing thermal from air after heat exchange. The low temperature low pressure refrigerant gas is inhaled into the compressor, after compressor compressing, the gas become high temperature high pressure refrigerant gas and get into the condenser. Then the refrigerant gas get into the condenser, after heat dissipation, the refrigerant gas become high pressure refrigerant liquid. Above is a complete cycle of refrigerating after repeating.

Bulk Production

Package and Shipping

Packaging And Shipping

Wood packing is a must for dehumidifiers international shipping. To port or door, get flexible, reliable and affordable shipping solutions that fit your business.

Fixing with screw on plywood for stable transporation.

Rolling with poly to prevent scratching.

Both sticker or printing carton mark can be OK.

After Sale Guarantee

OUR SERVICES

We provide 12 months warranty for whole unit. If any problem due to our quality within 12 month, please send photo or video to us, we will send the broken parts to you free.
We provide 36 months warranty for the compressor.
The single serise number of each machine can be kept in EAST system, so that we can trace the production source.
